Module 1 Formstorming

Weekly Activity Template

Yuxuan Xie

Project 1

Module 1

In Module 1, we are going to learn about circuits.

Activity 1

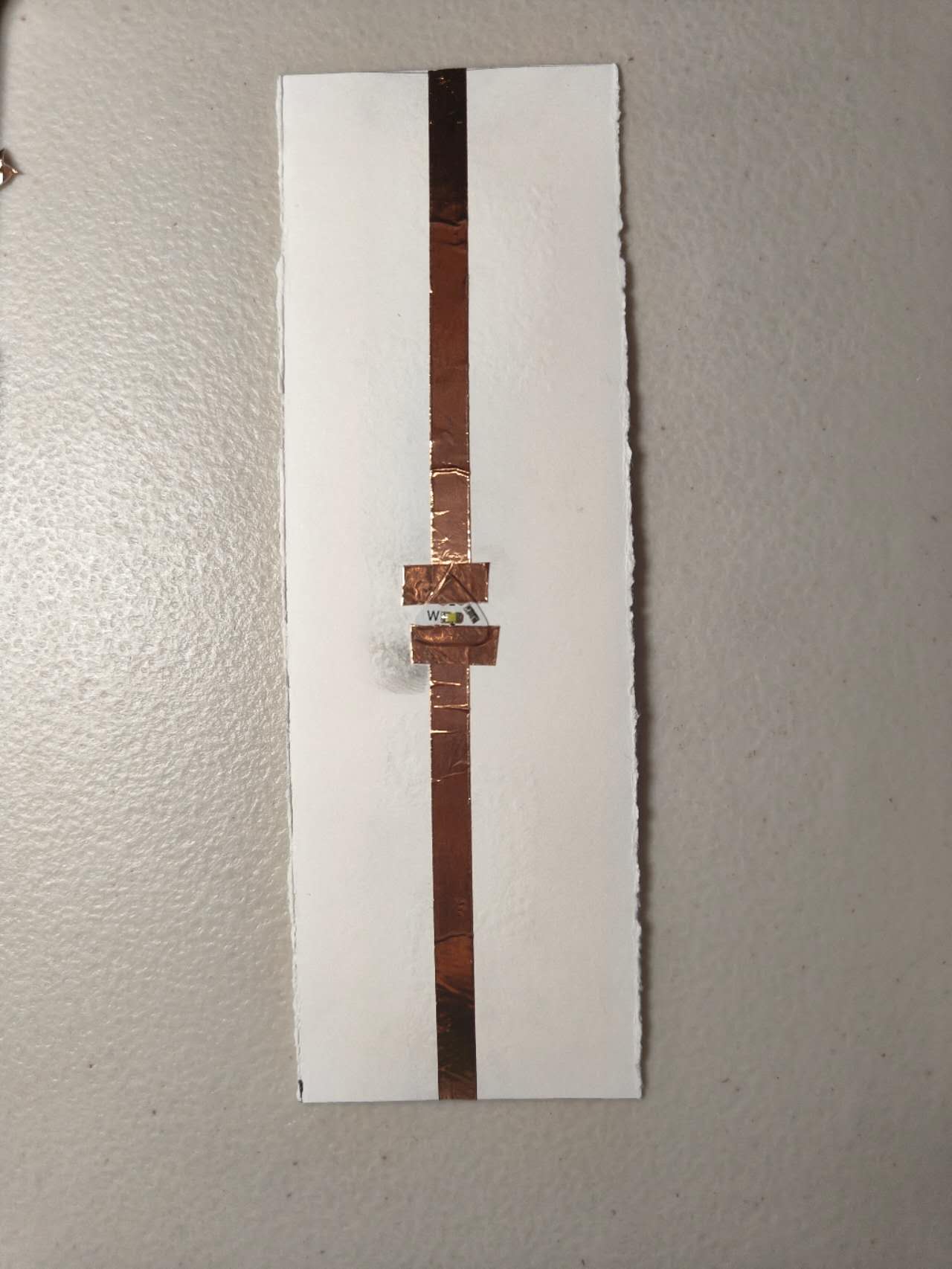

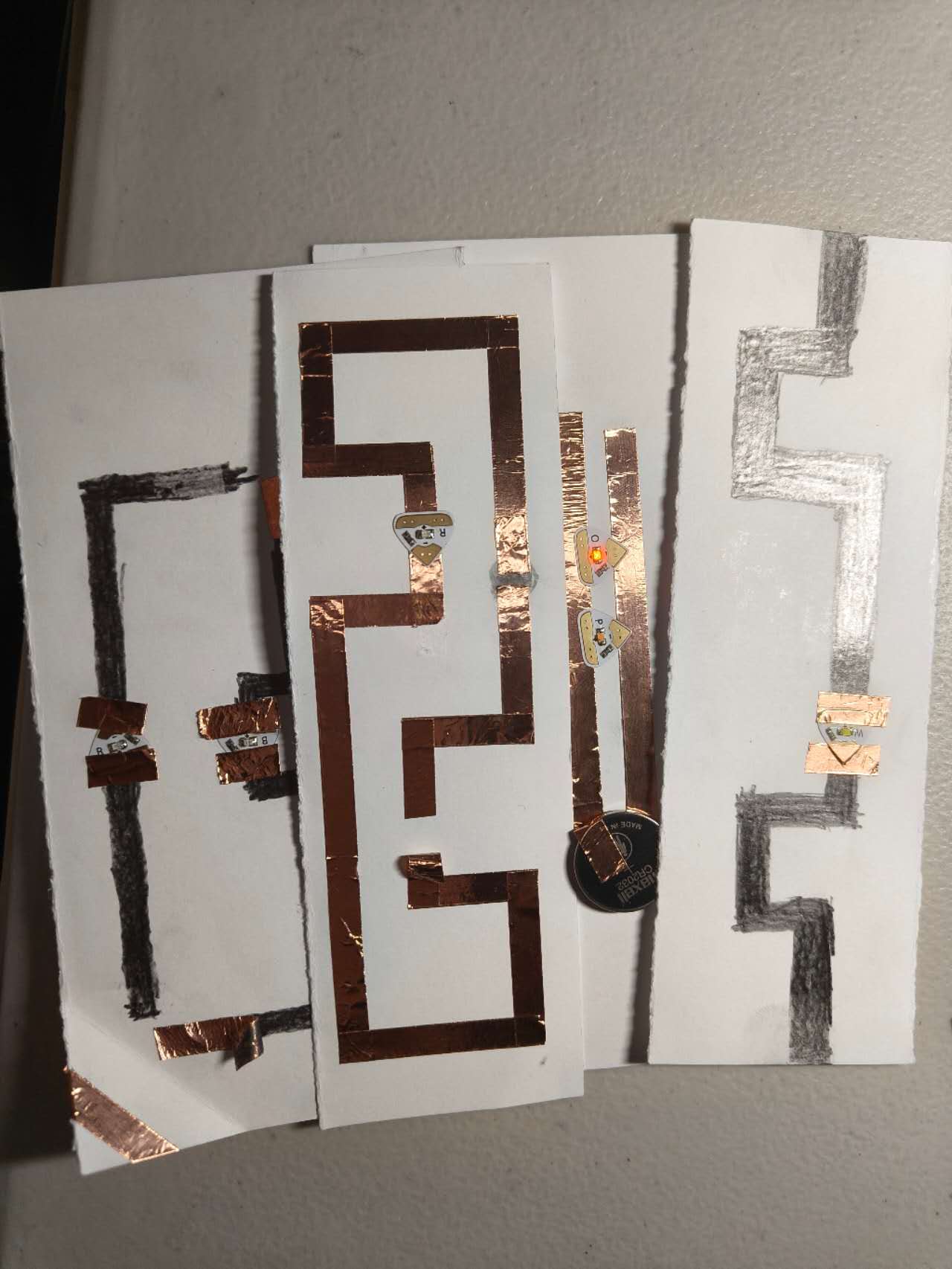

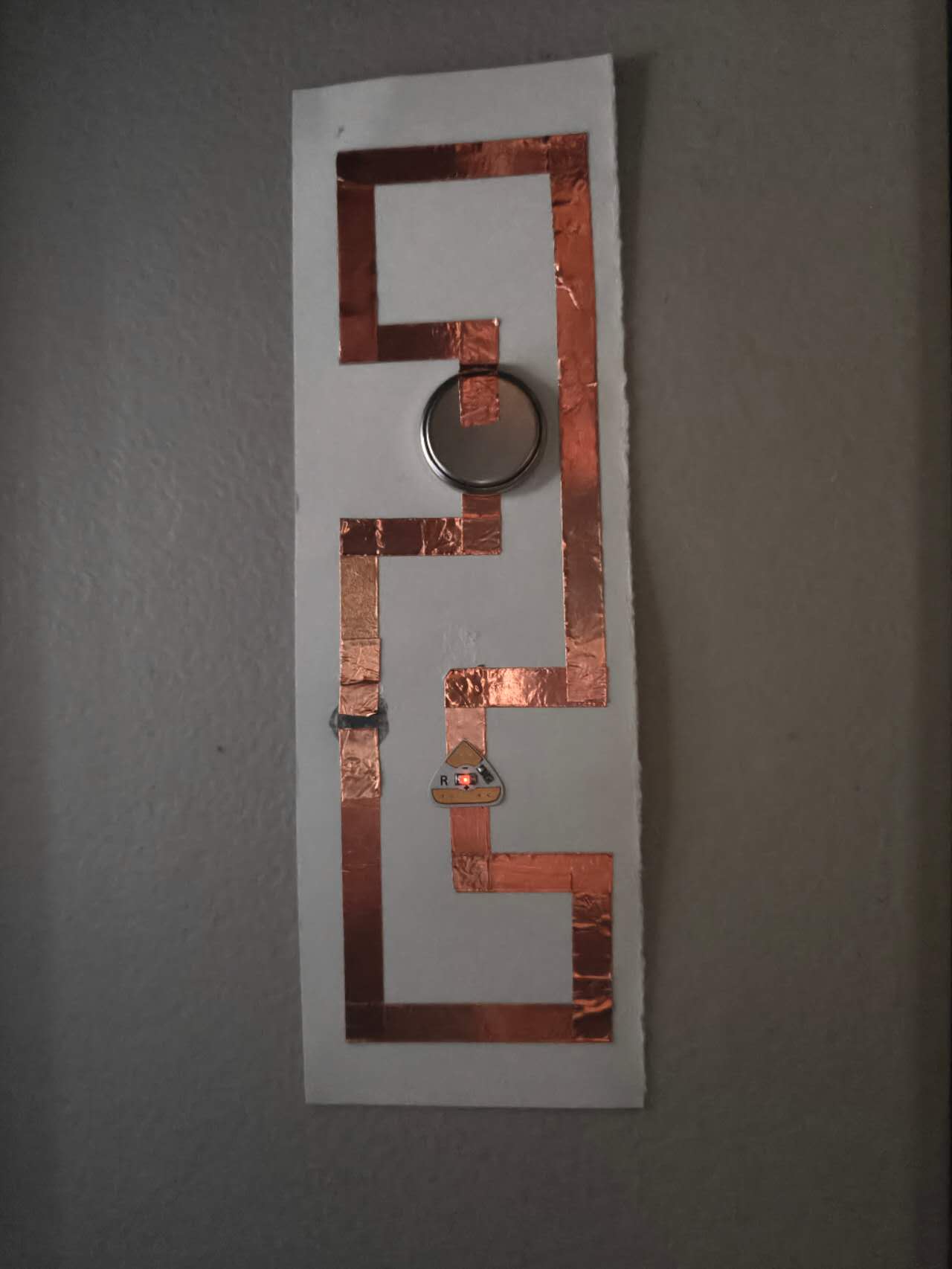

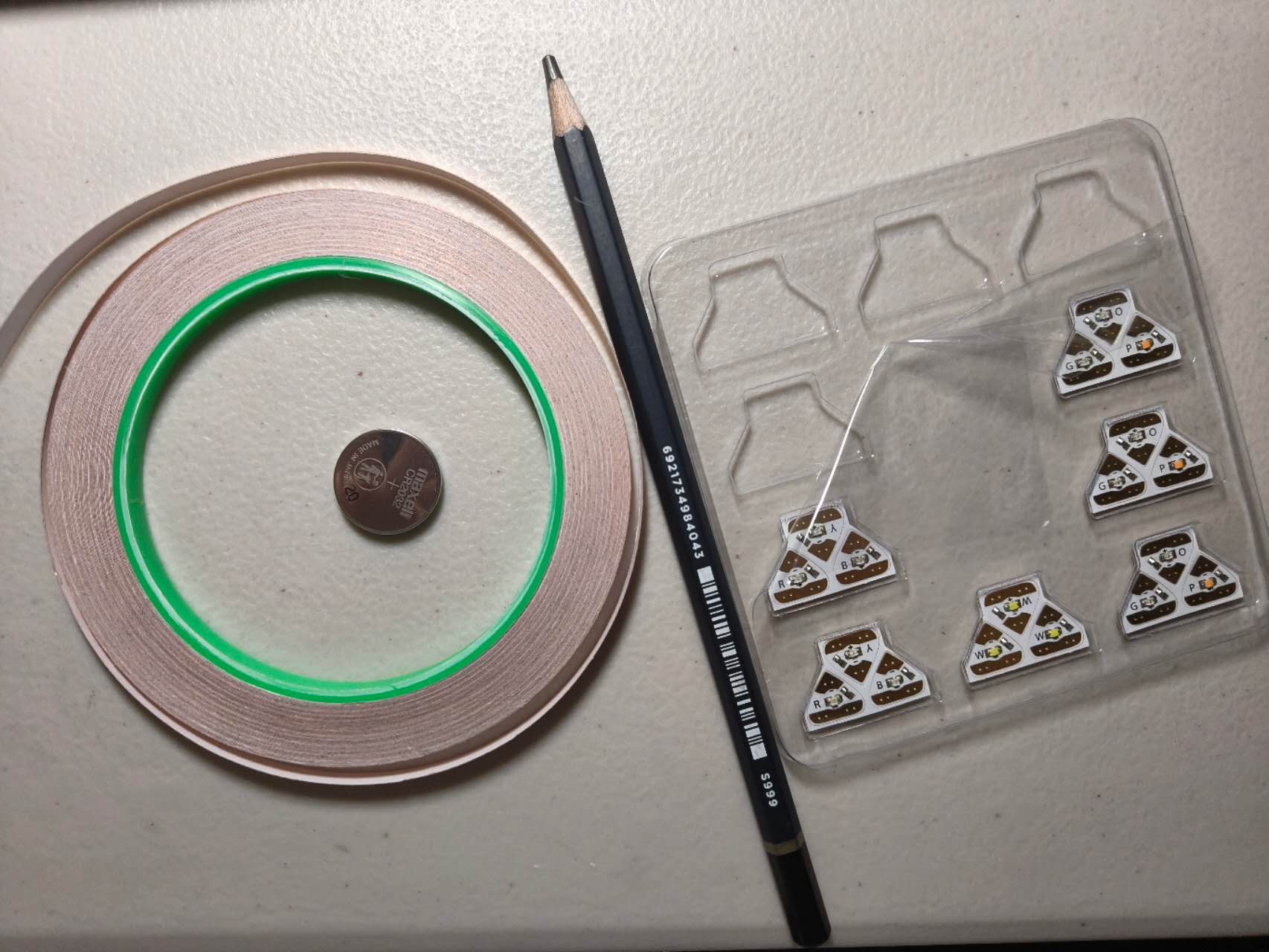

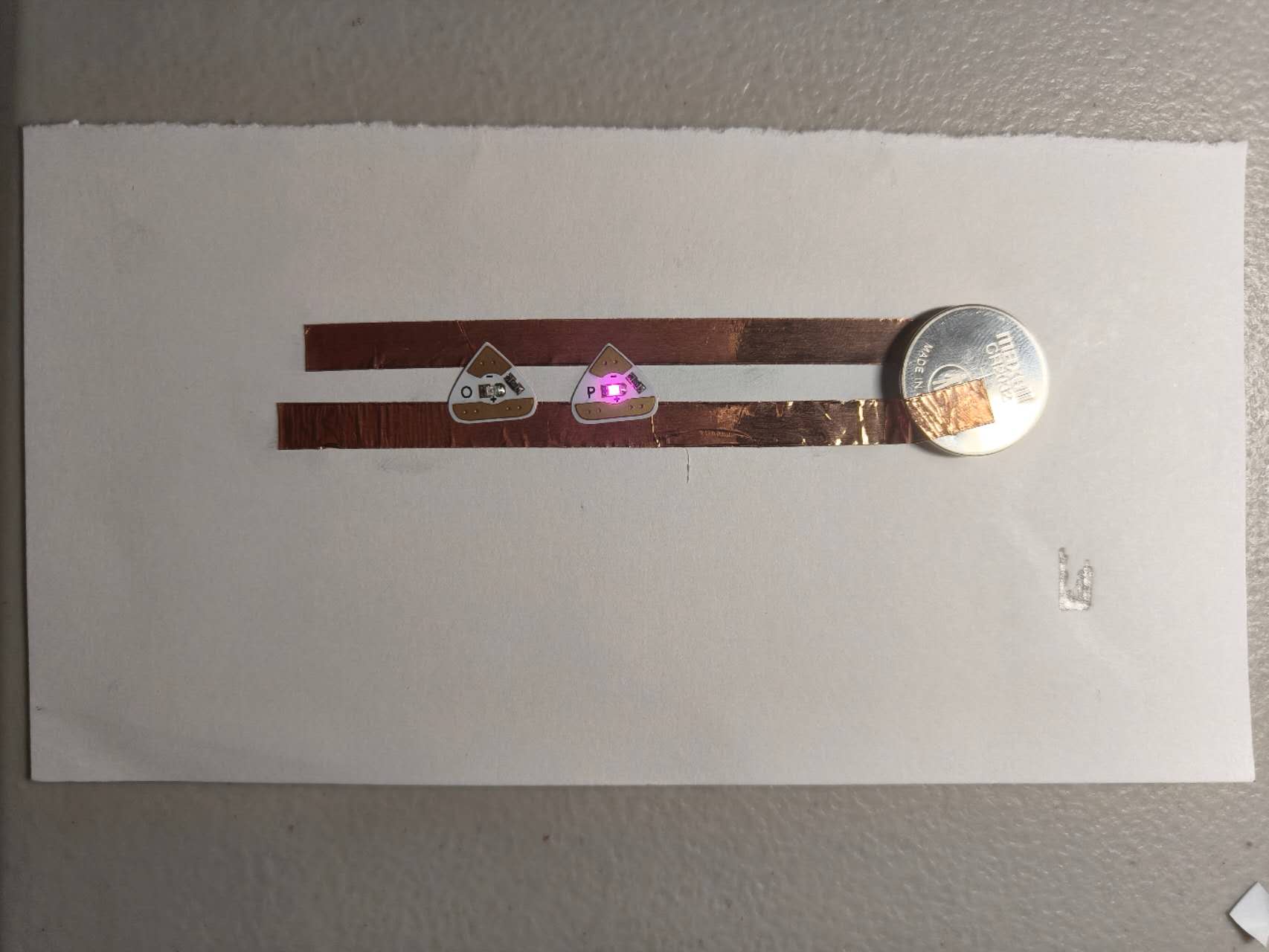

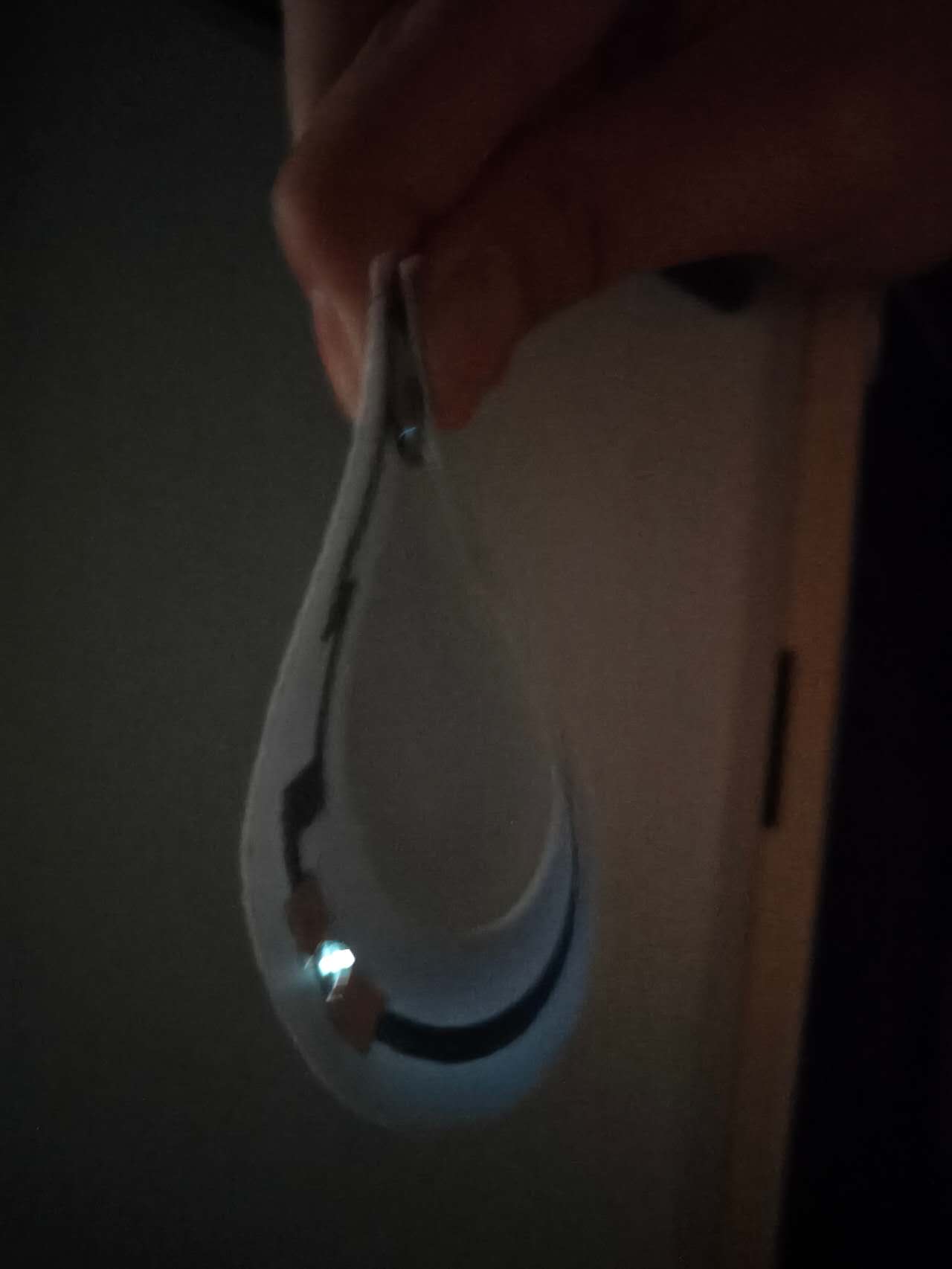

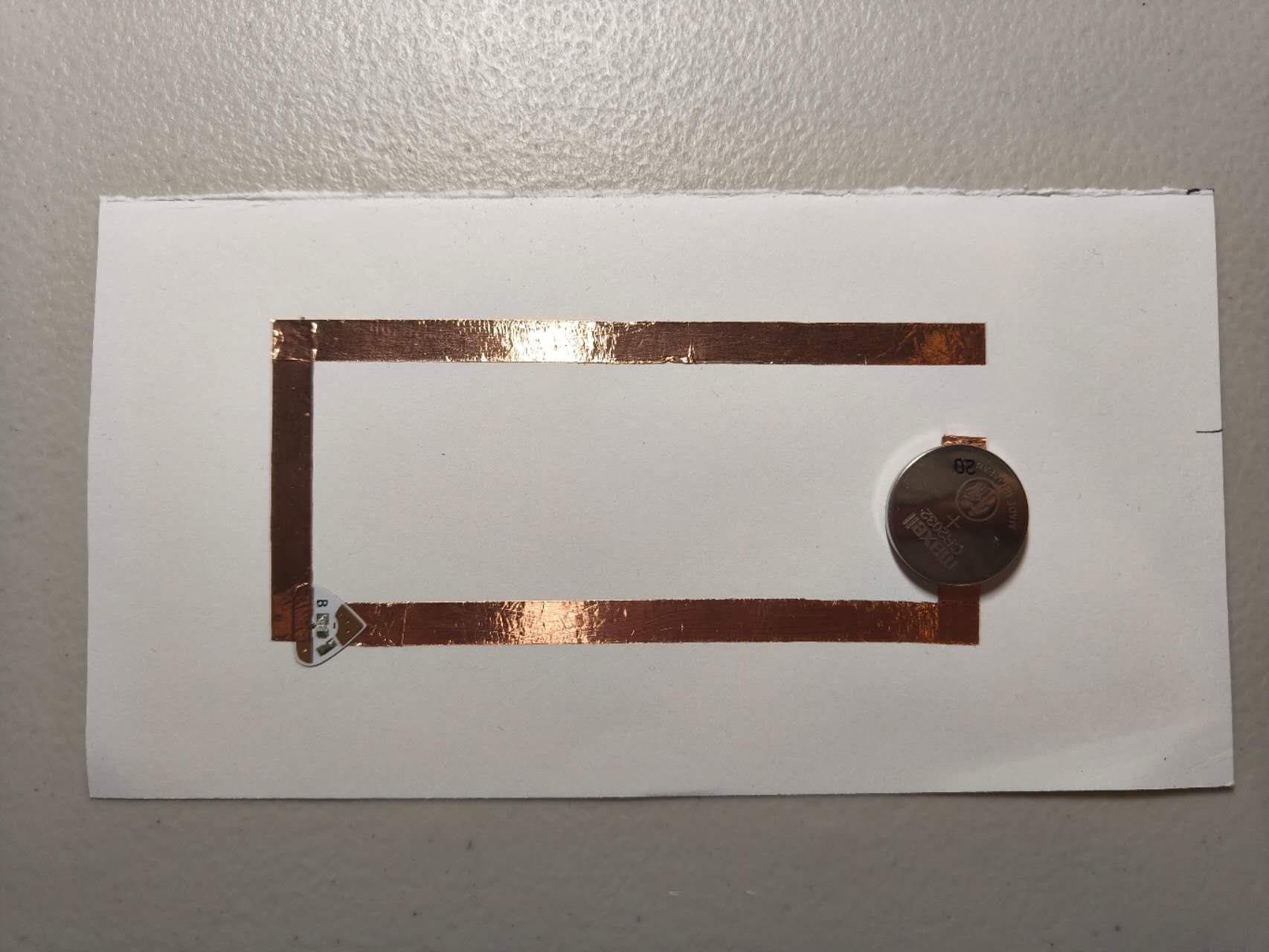

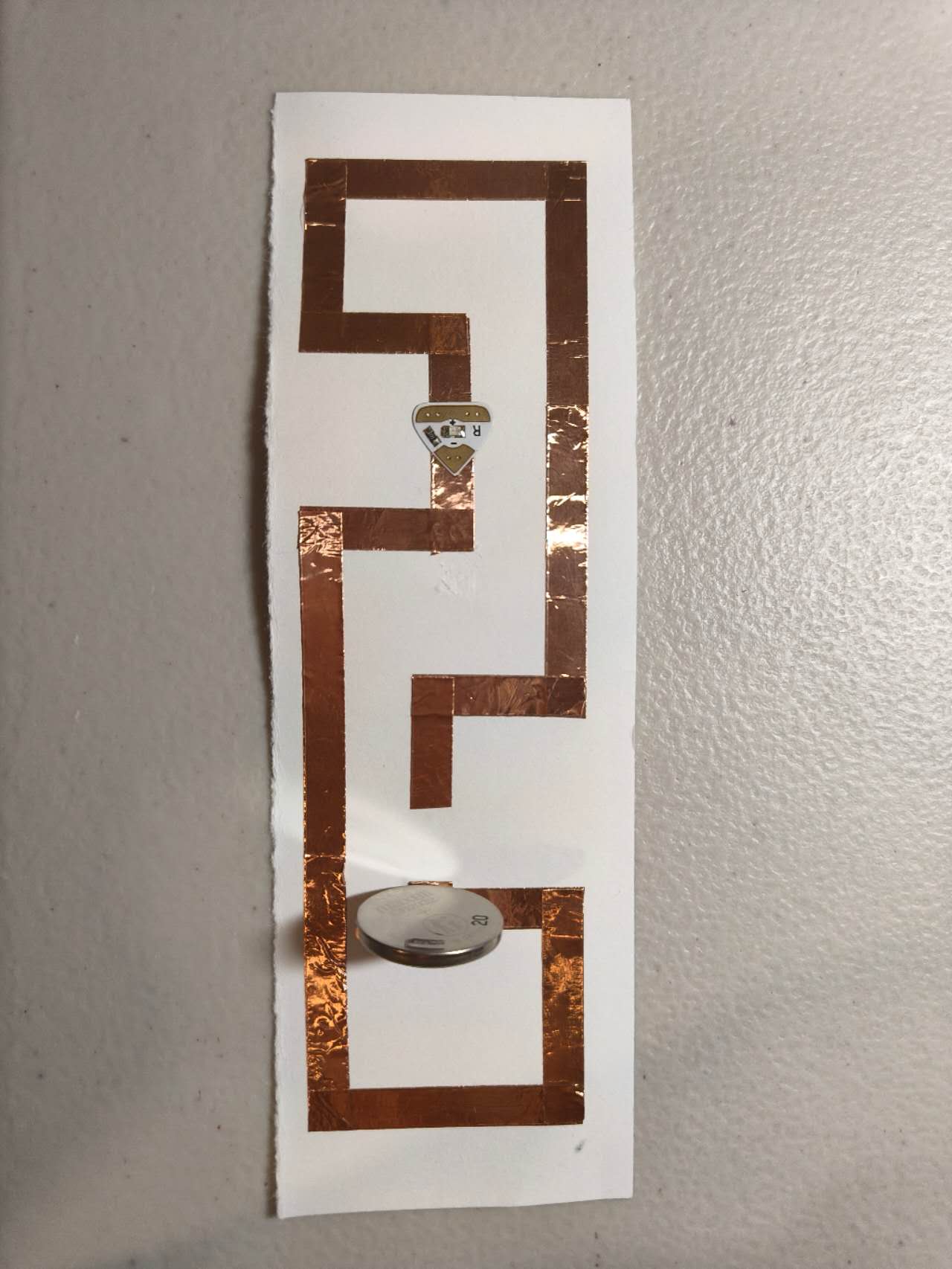

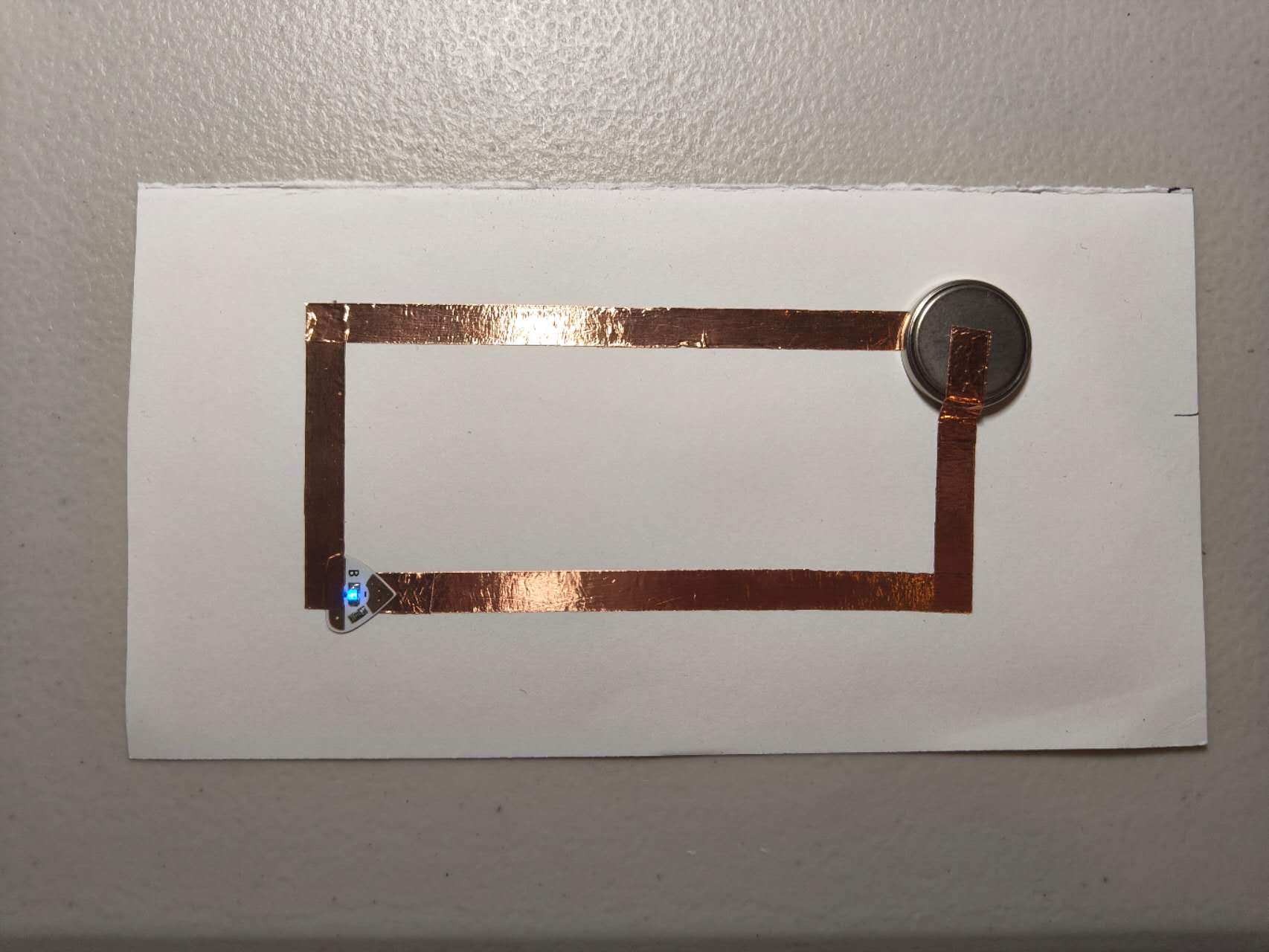

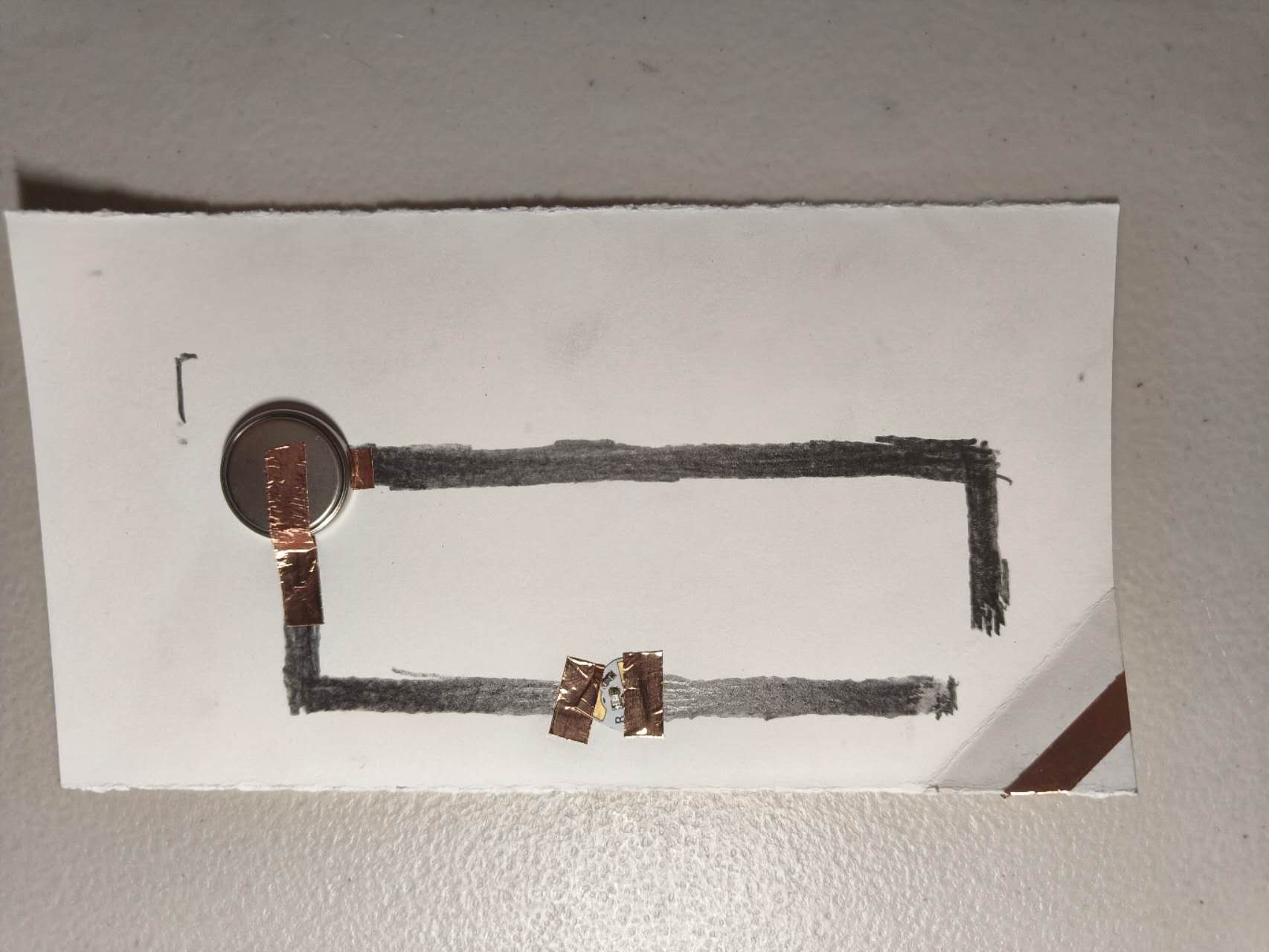

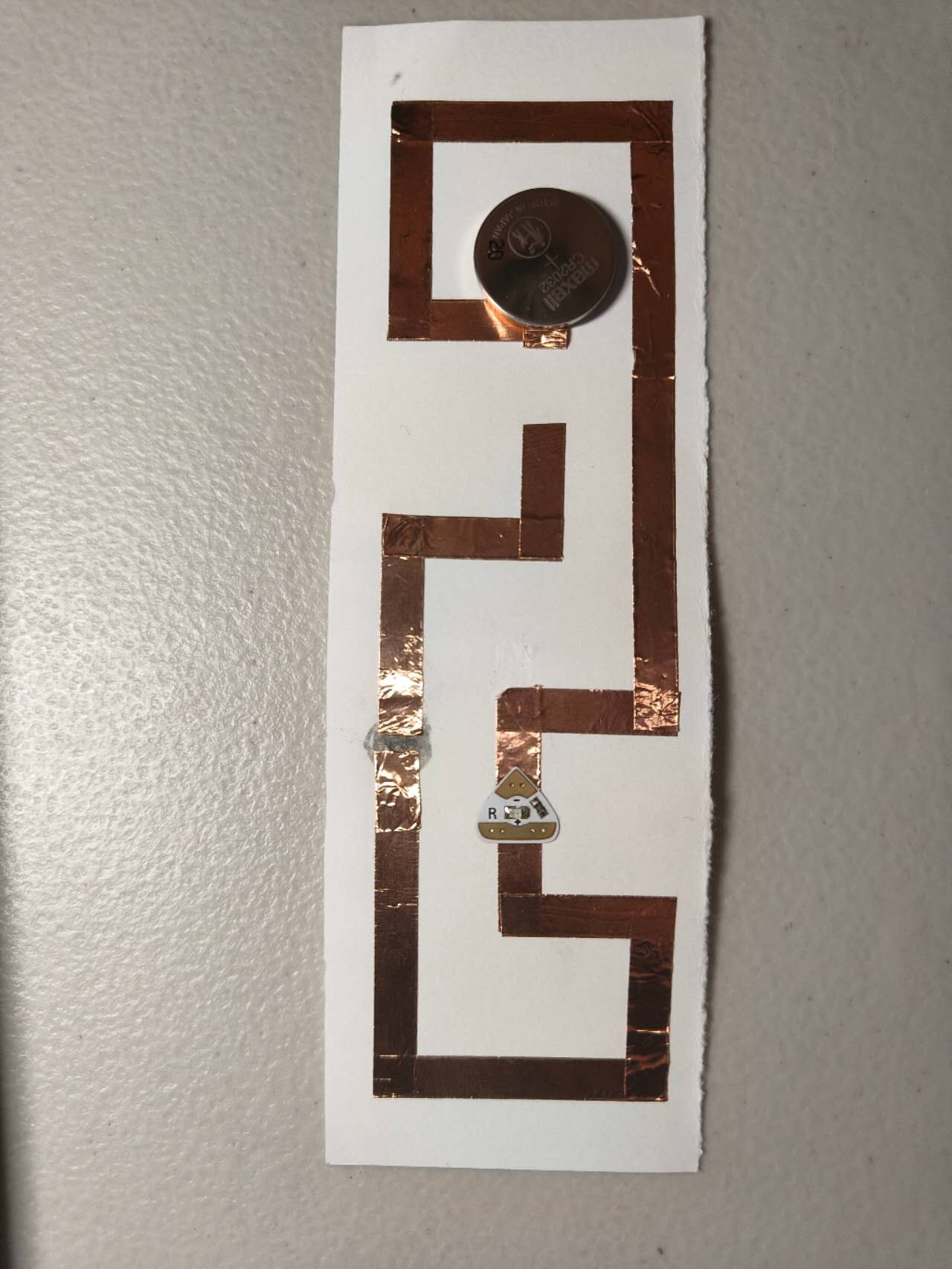

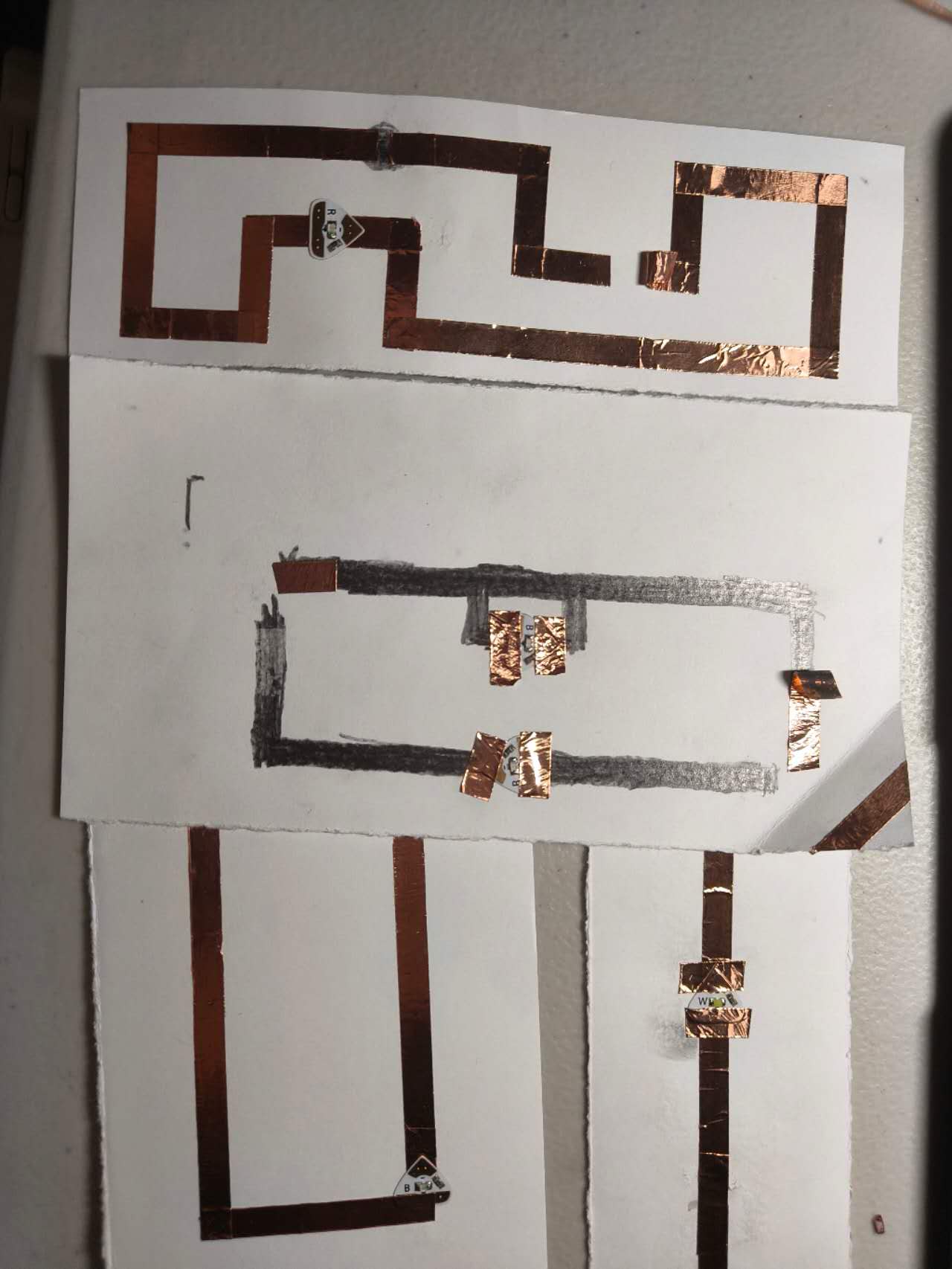

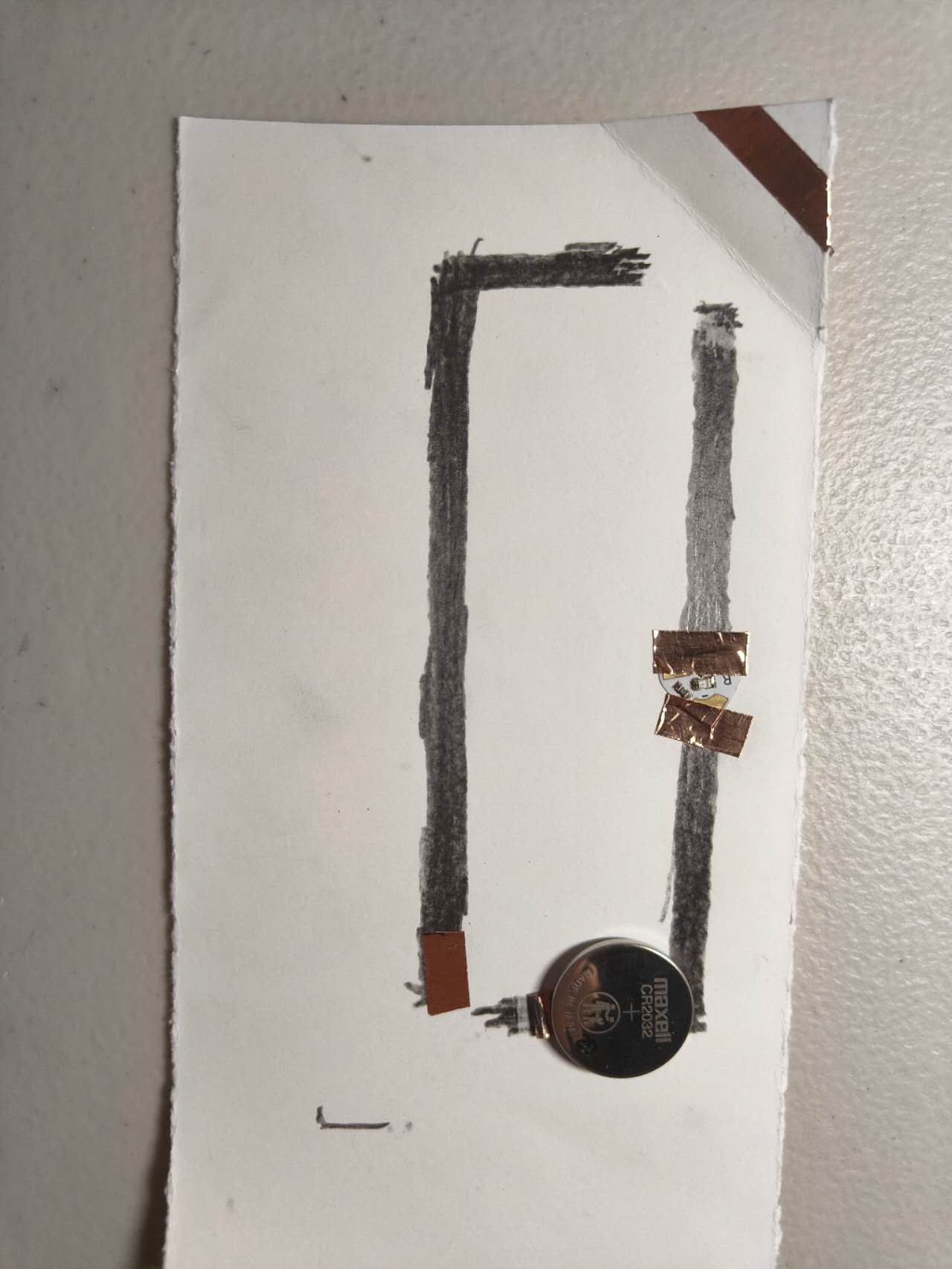

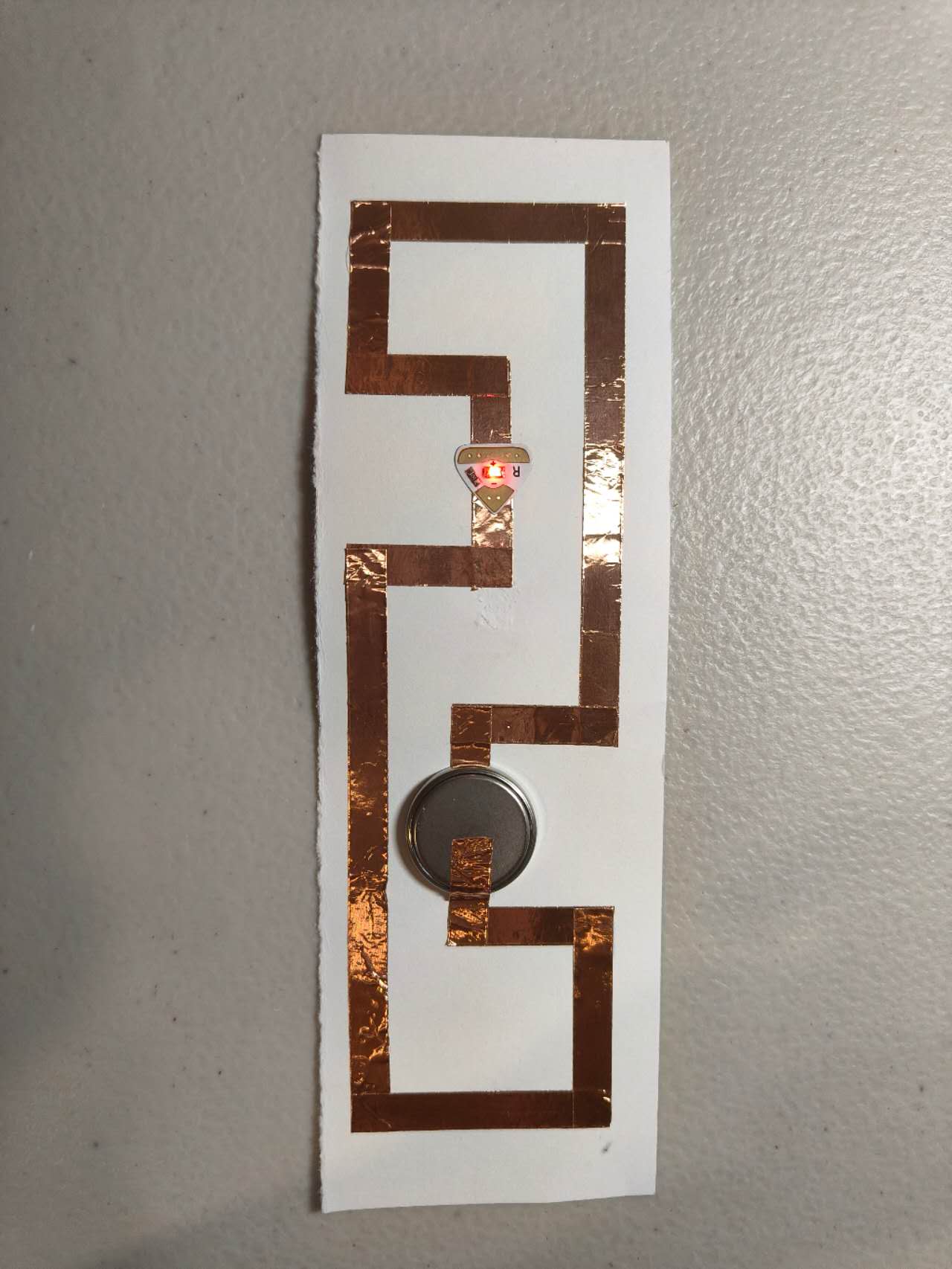

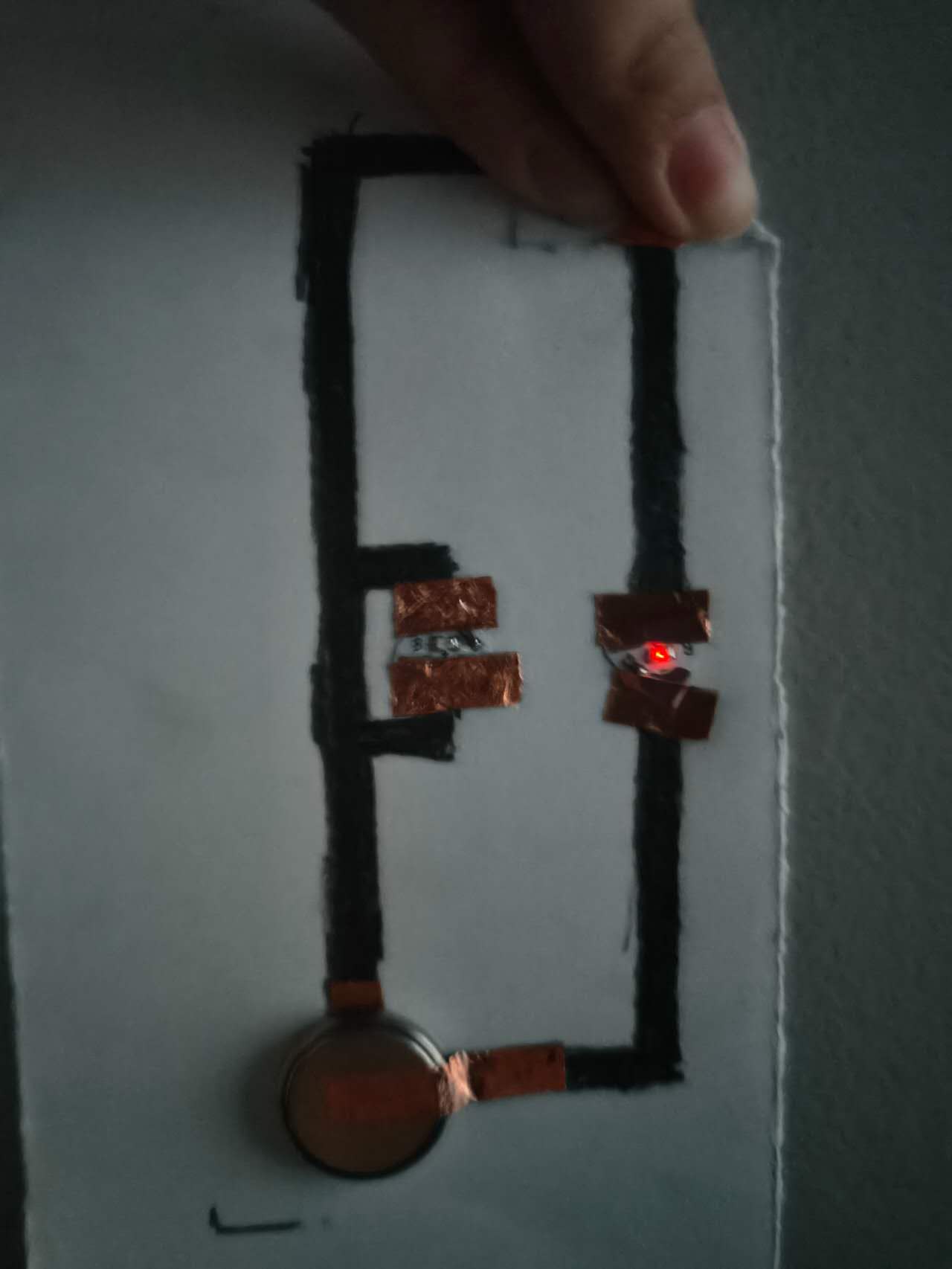

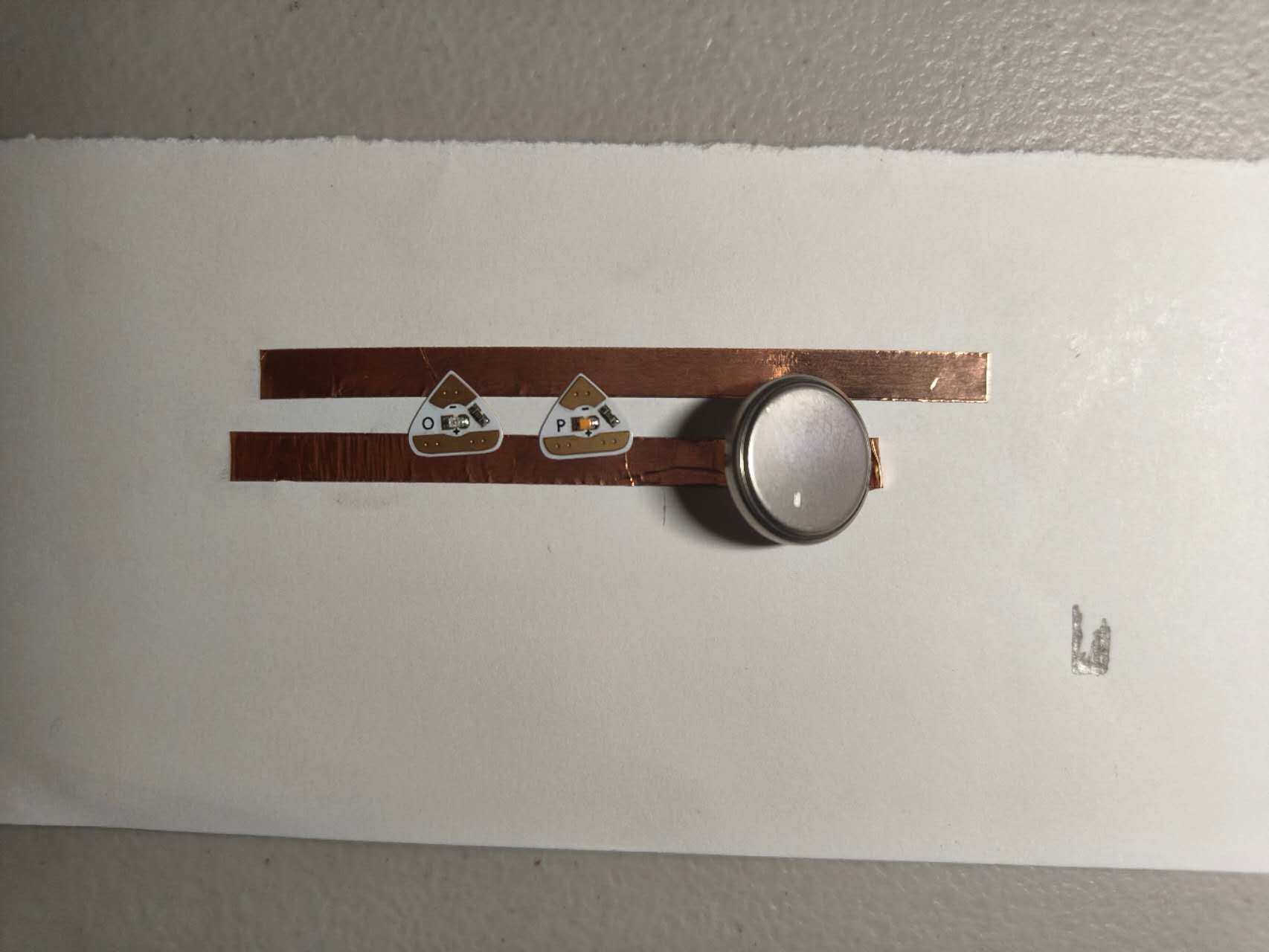

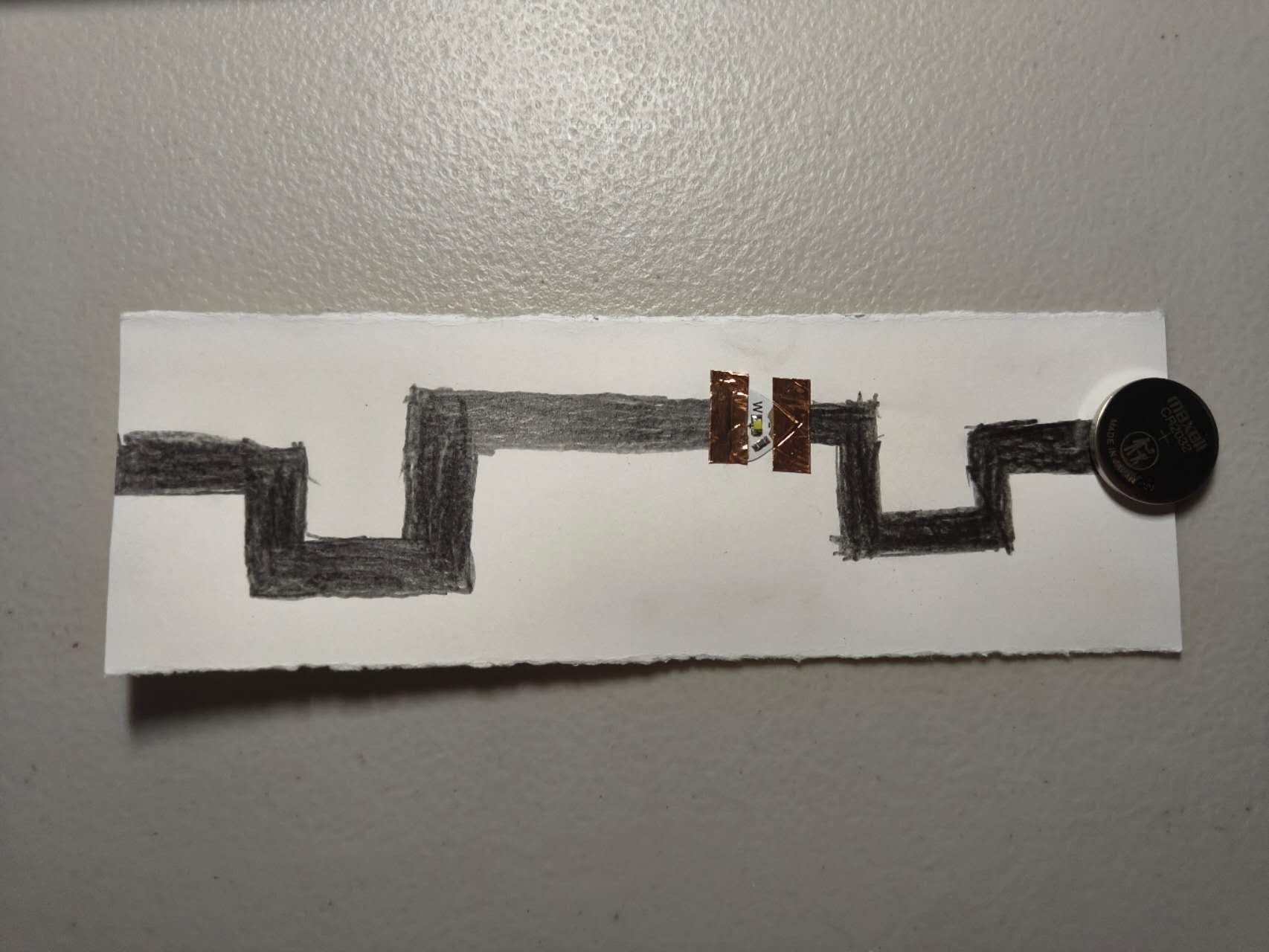

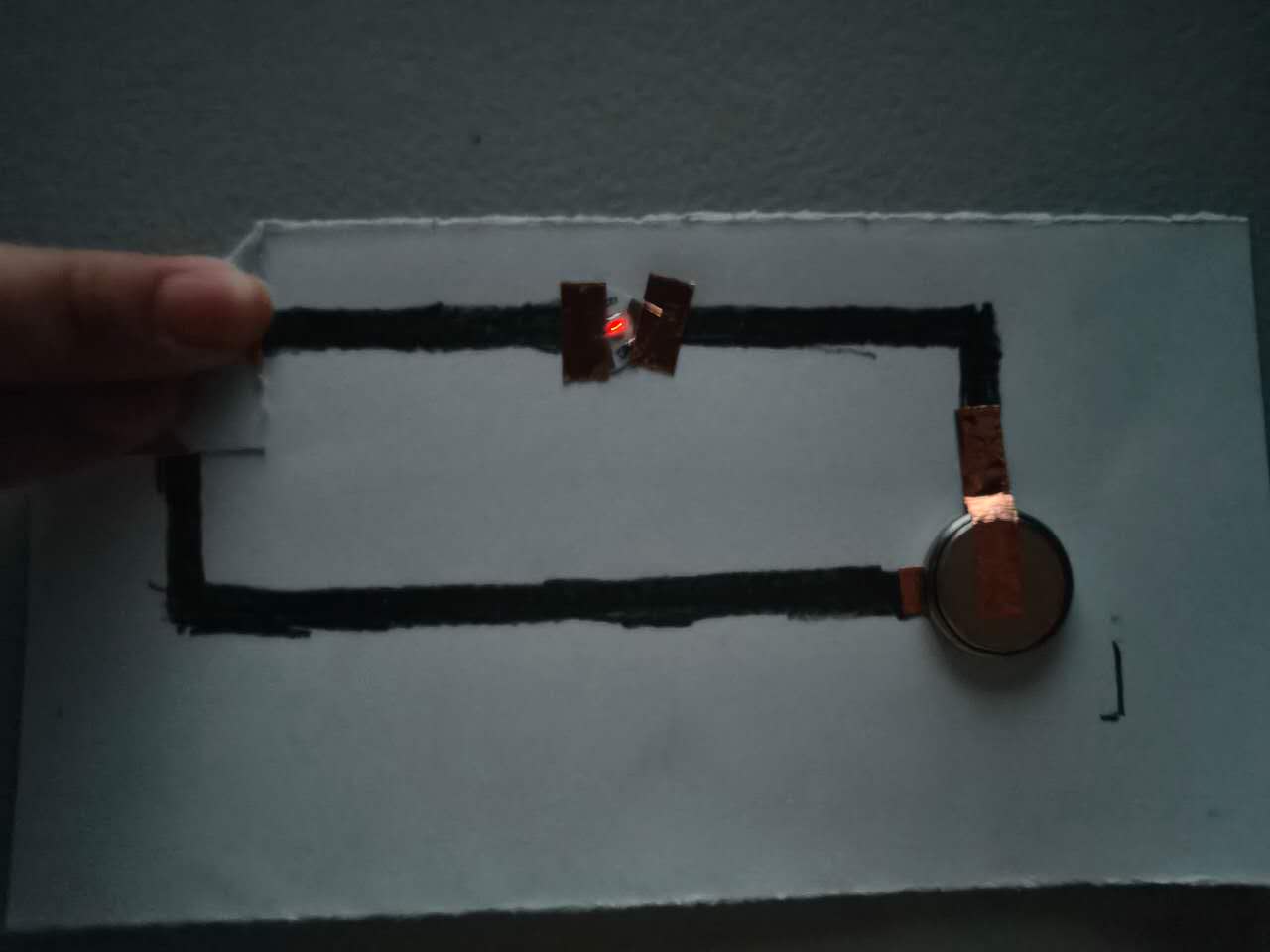

Materials Prototype #1 Prototype #1 Prototype #1 Prototype #2 Prototype #2 Prototype #2 Prototype #2 Prototype #2 Prototype #2 Prototype #3 Prototype #3 Prototype #3 Prototype #4 Prototype #4 Prototype #4 Prototype #4 Prototype #4 Prototype #4 Prototype #5 Prototype #5 Prototype #5 All prototypes All prototypes All prototypes

Activity 2

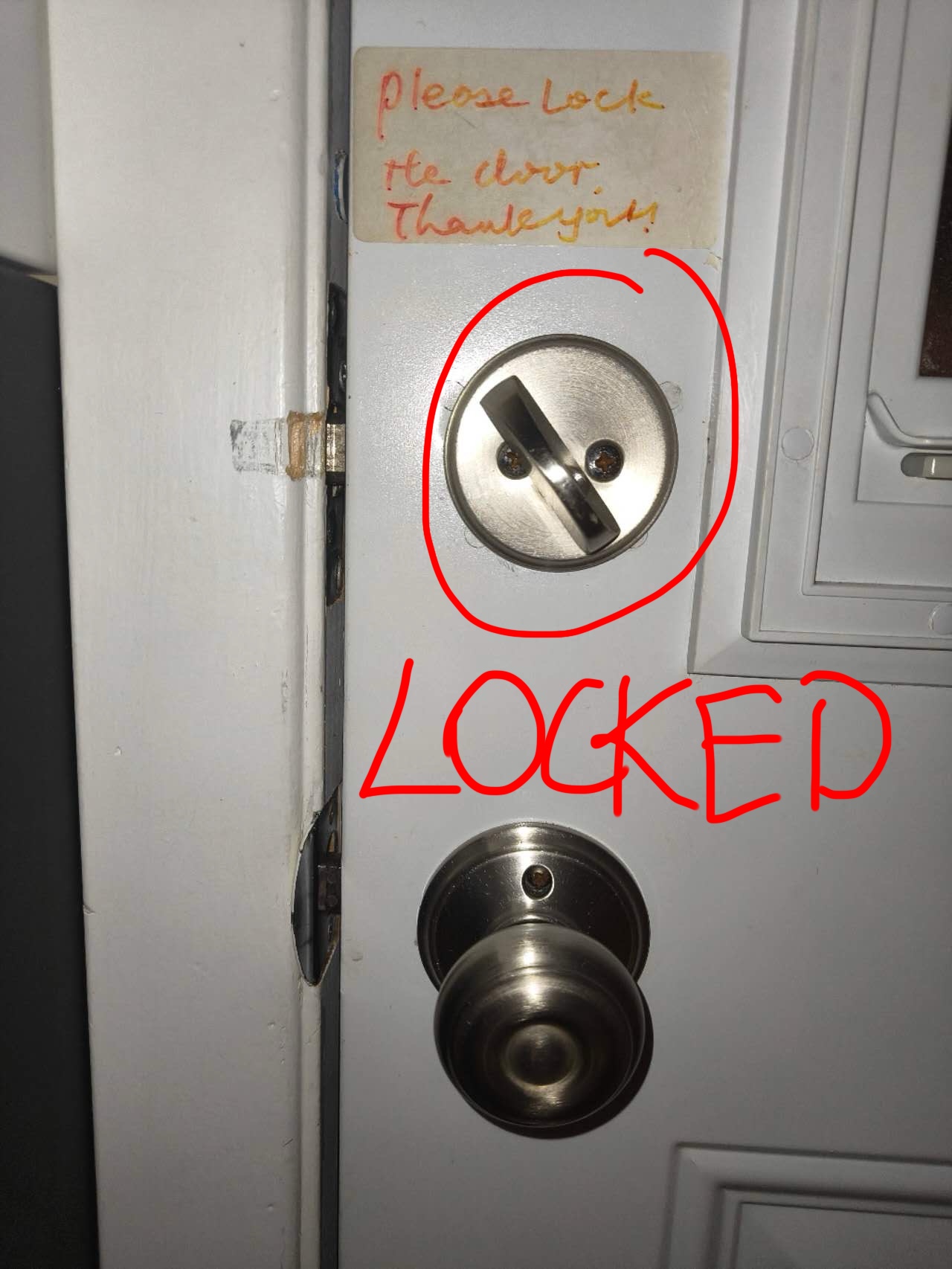

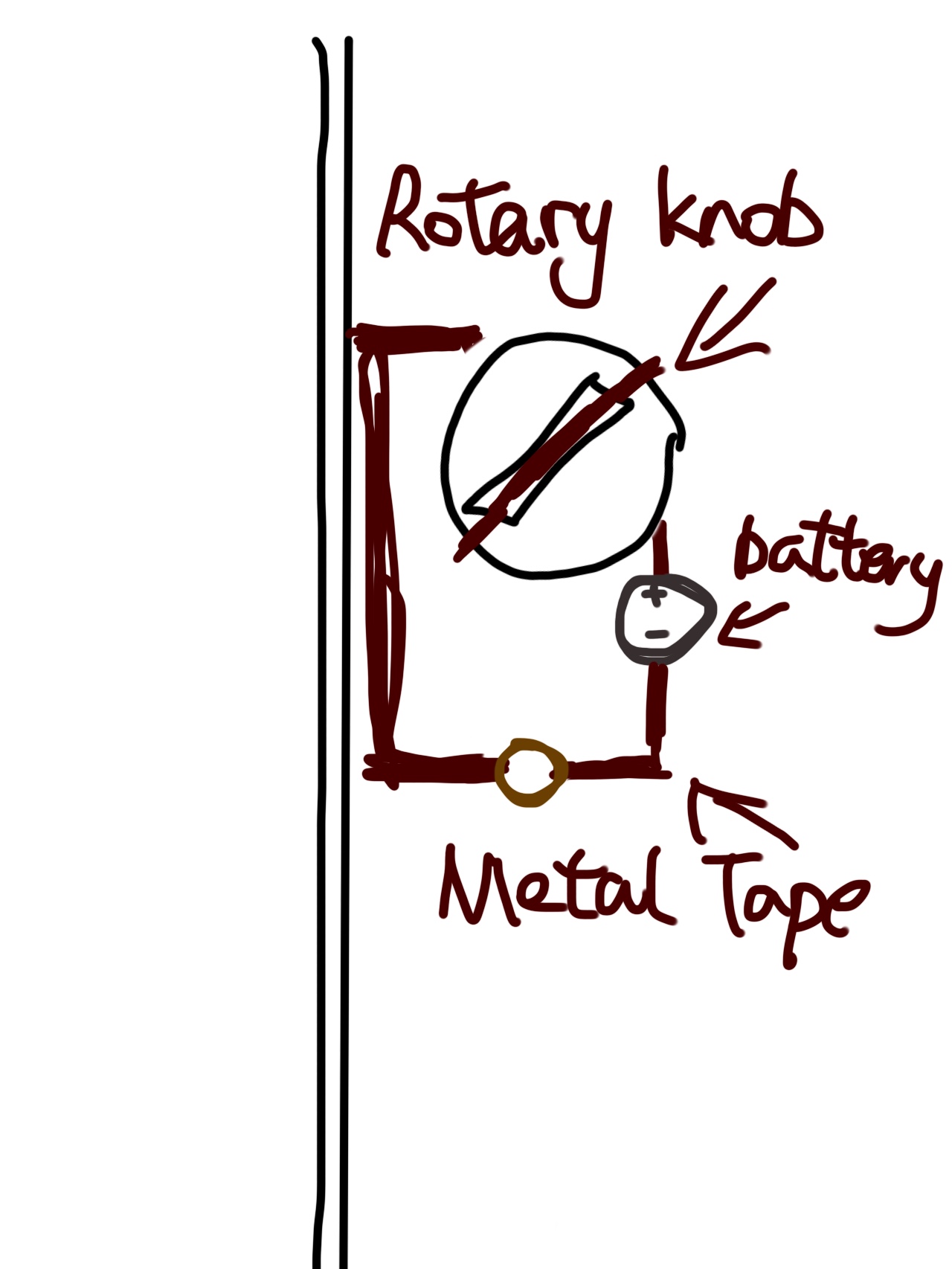

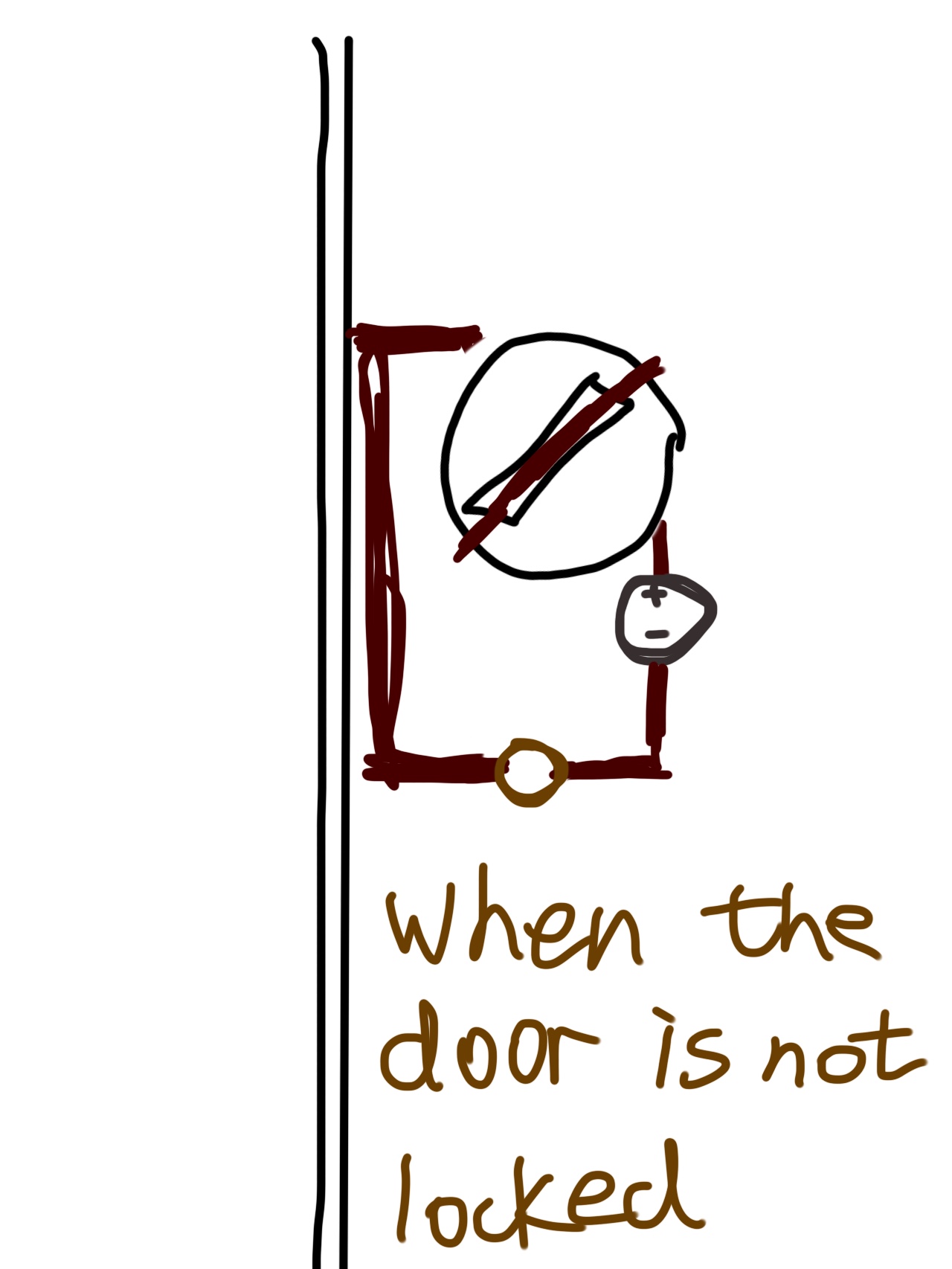

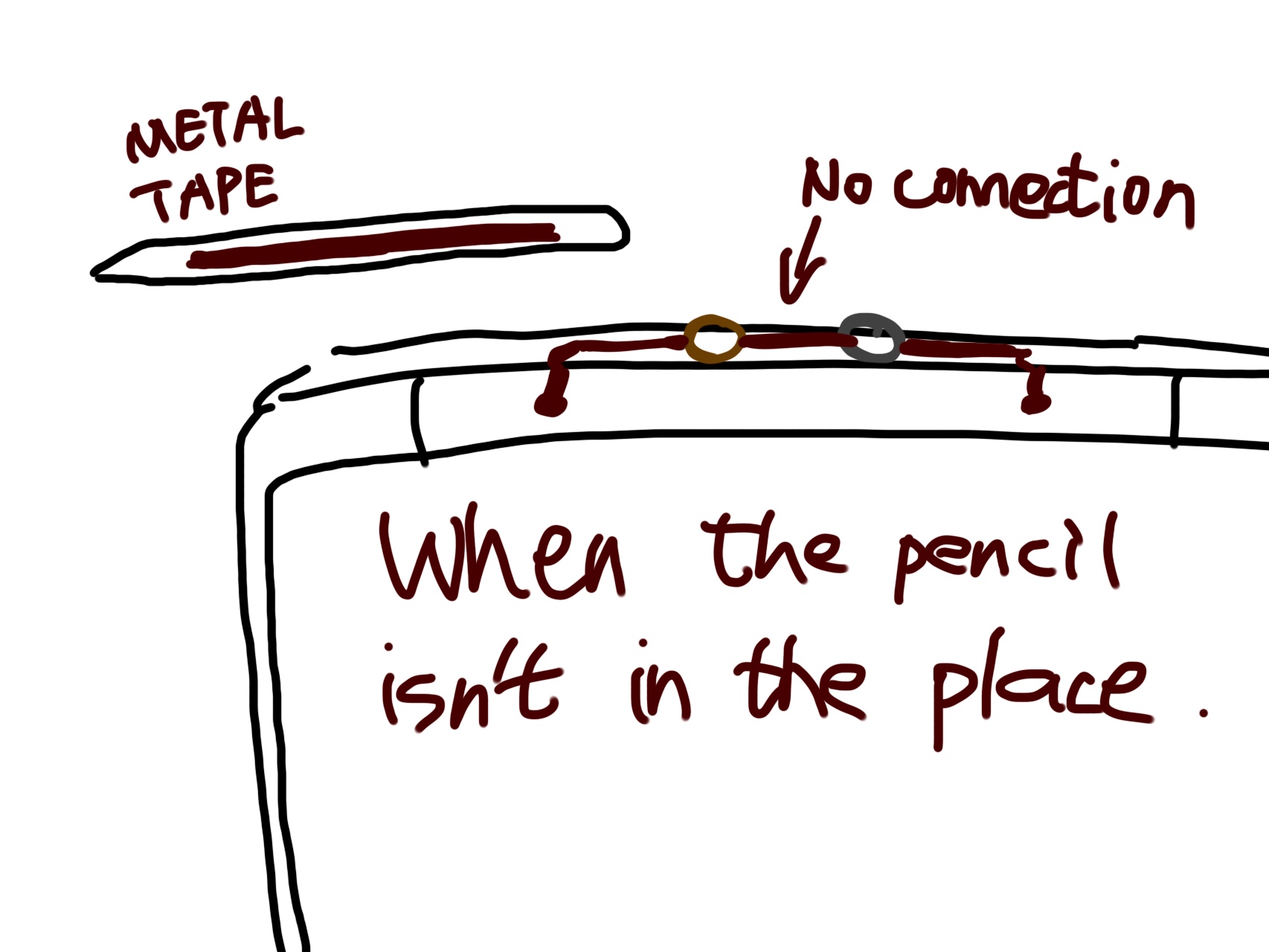

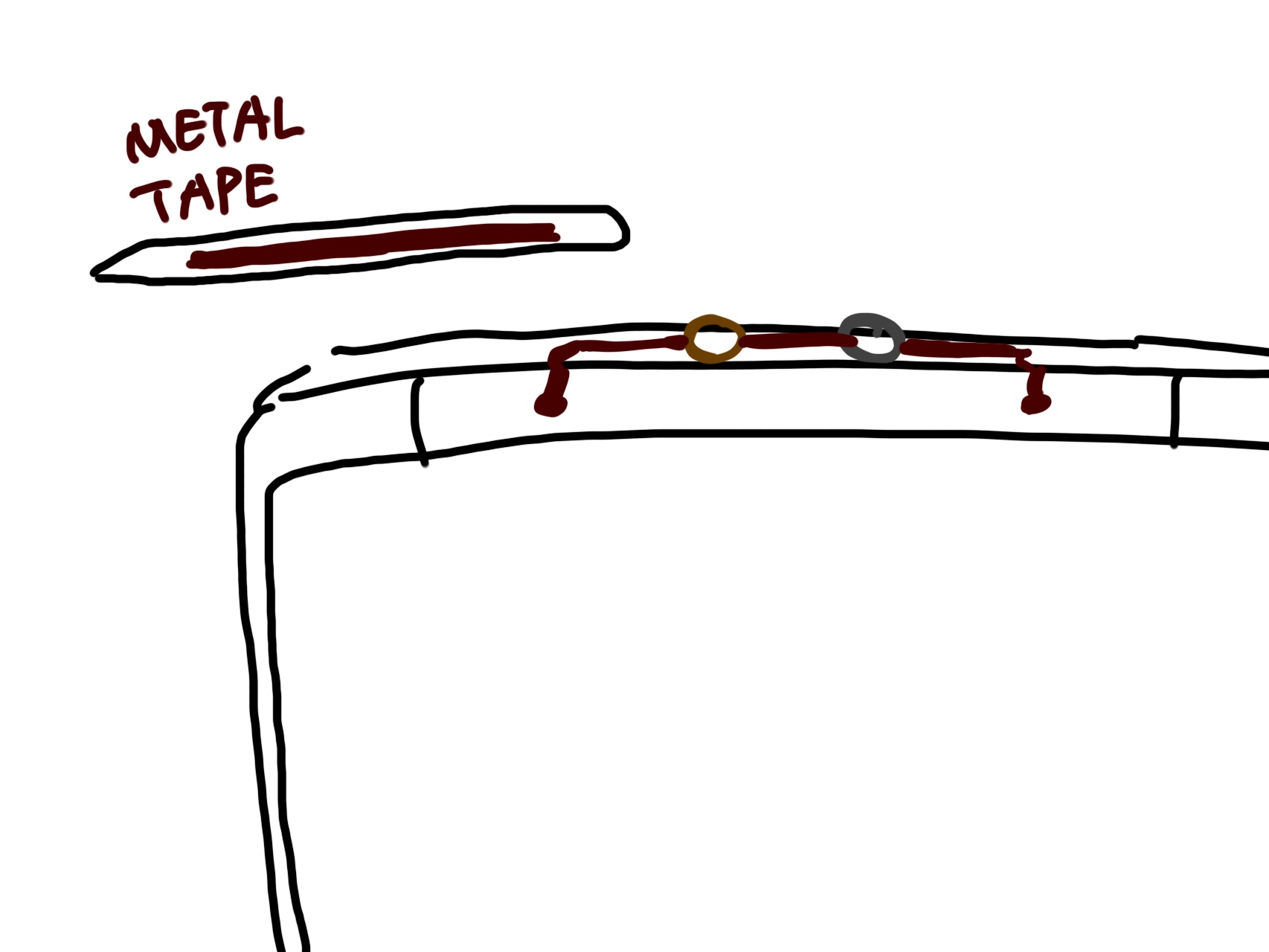

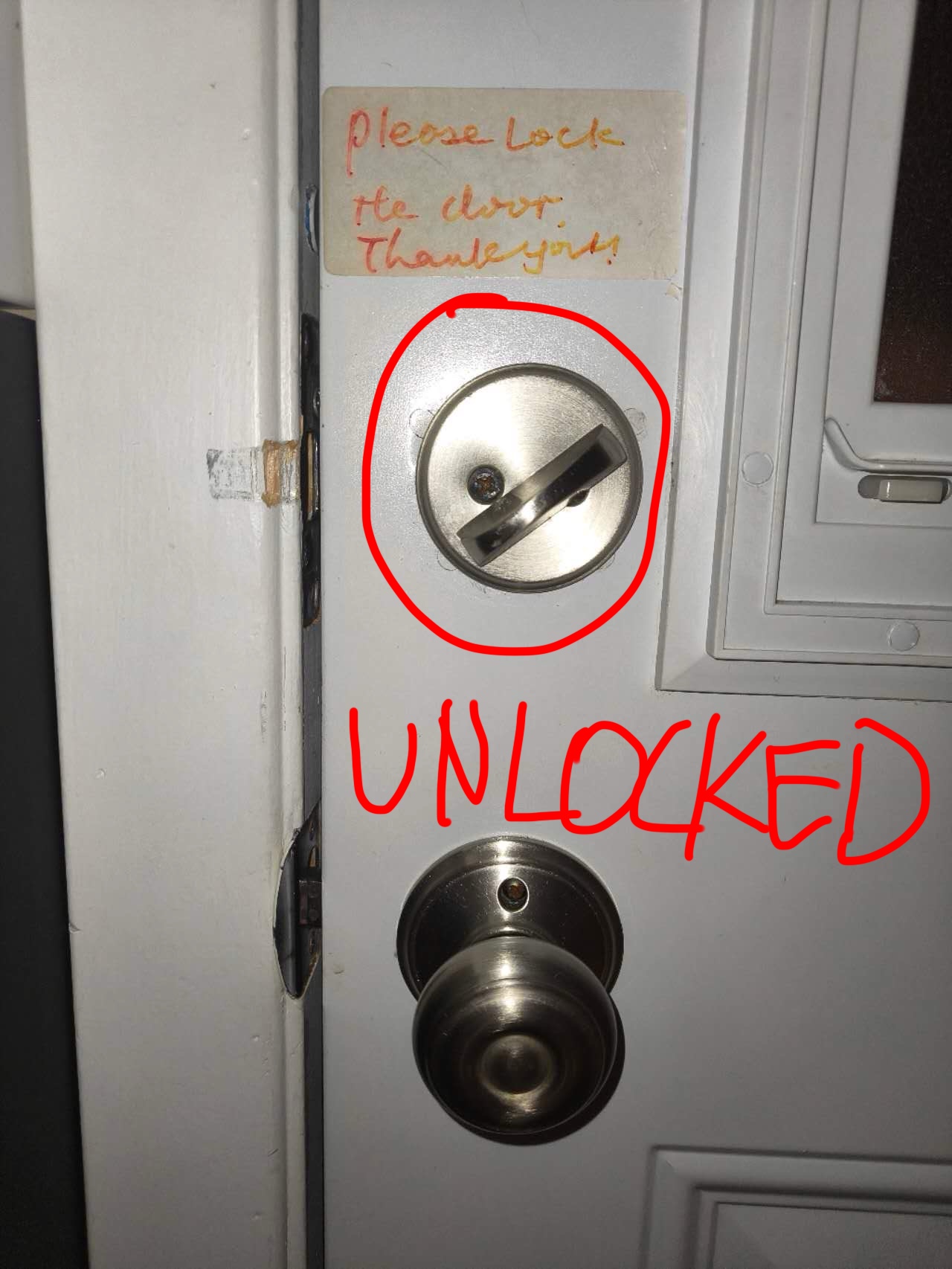

This is the door lock when it's locked This is the door lock when it's unlocked The main logic is when the rotary knob spins to the LOCKED stautus, the metal tape will connect the circuit When the door is locked, the circuit is connected, the light is on When the door is unlocked, the circuit is not connected, the light is off This is the wallet when it's closed This is the wallet when it's not closed The main logic is when the zipper is slide to the bottom, which the wallte is CLOSED statud, the metal tape will connect the circuit When the zipper is pulled and the wallet is closed, the circuit is connected, the light is on When the zipper is not pulled and the wallet is not closed, the circuit is not connected, the light is off This is the ipad(case) when there is a pencil This is the ipad(case) when there is no pencil The main logic is there is a small piece of tape on the back of the pencil, when the pencil is in the case(where it should be), the metal tape will connect the circuit When the pencil is in the case, the circuit is connected, the light is on When the pencil is not in the case, the circuit is not connected, the light is off This is the water bottle when the lid is on This is the water bottle when the lid is not on The main logic is there is a small piece of tape on the bottom of the lid, when the lid is on, the metal tape will connect the circuit When the lid is on, the circuit is connected, the light is on When the lid is not on, the circuit is not connected, the light is off This is the box when the it is closed This is the box when the it is not closed The main logic is when the box is closed, the connecter of the light will touch the metal tape on the bottom part of the box, the circuit will be connected When the box is closed, the circuit is connected, the light is on When the box is not closed, the circuit is not connected, the light is off

Project 1

Final Project 1 Design

Wearable Interactive Affordance Based Circuit

GLOW GLASSES - A pair of light-up entertainment glasses that illuminate when the batteries on the temple arms are pressed. The left side lights up in yellow and orange, the right side in blue and purple. Suitable for parties, performances, and other occasions, focusing on fun interaction and visual experience.

Non-Wearable Interactive Affordance Based Circuit

BRING-YOUR-PENCIL REMINDER - An iPad Pencil carry reminder with a circuit built into the pen slot. When the pen with metal tape is inserted, it automatically lights up to remind the user that the pen is packed. Focused on practical functionality, solving the everyday problem of forgetting the pen.

×
